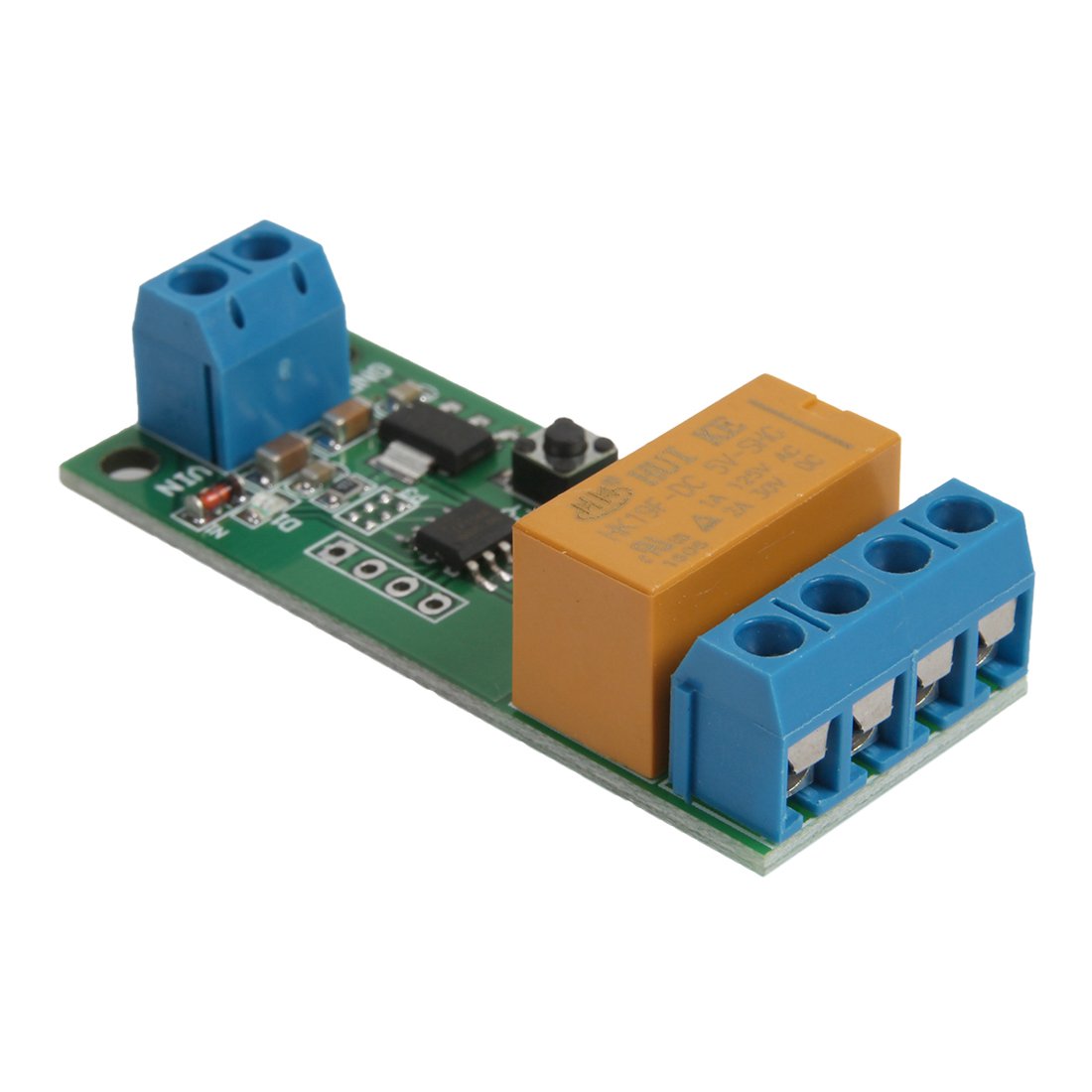

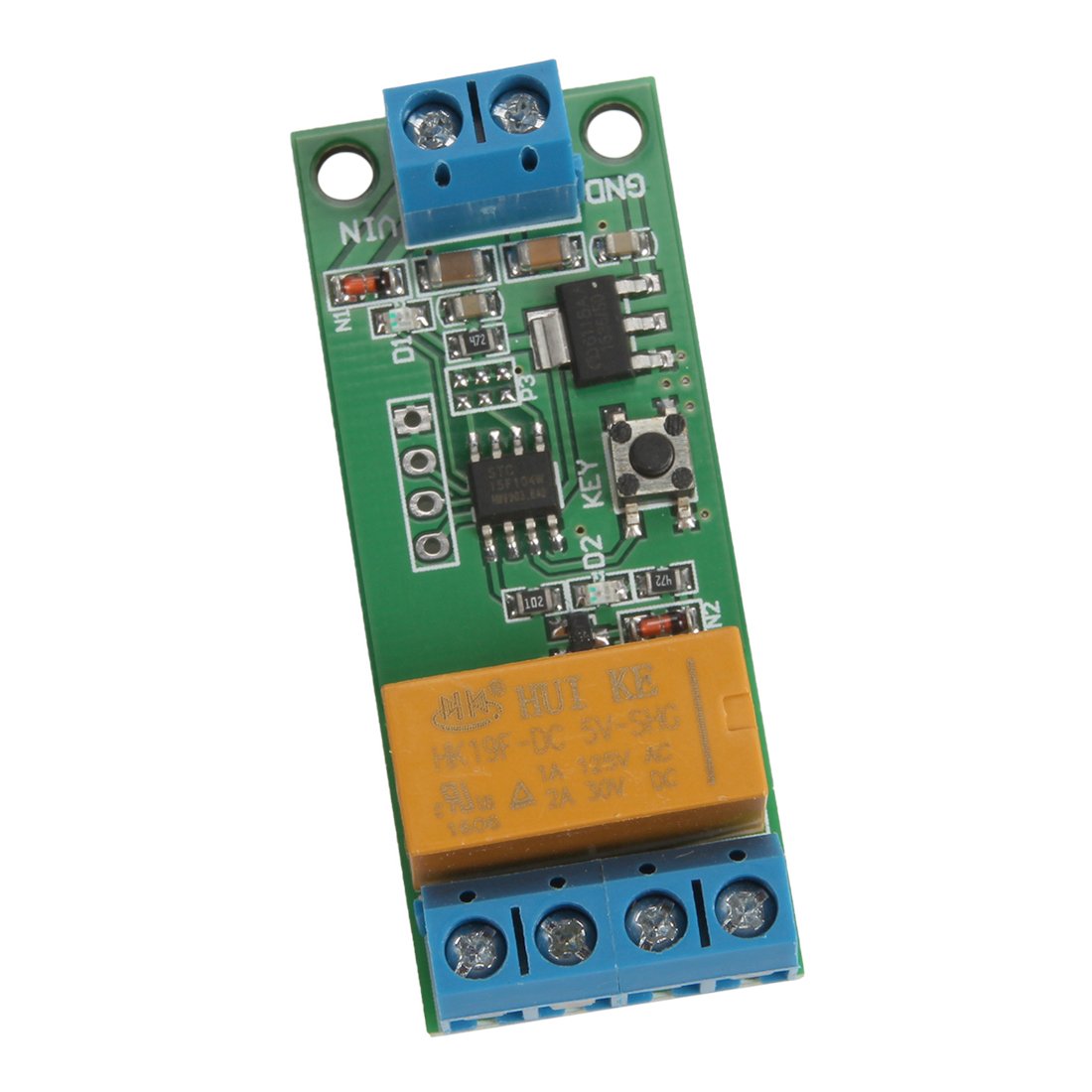

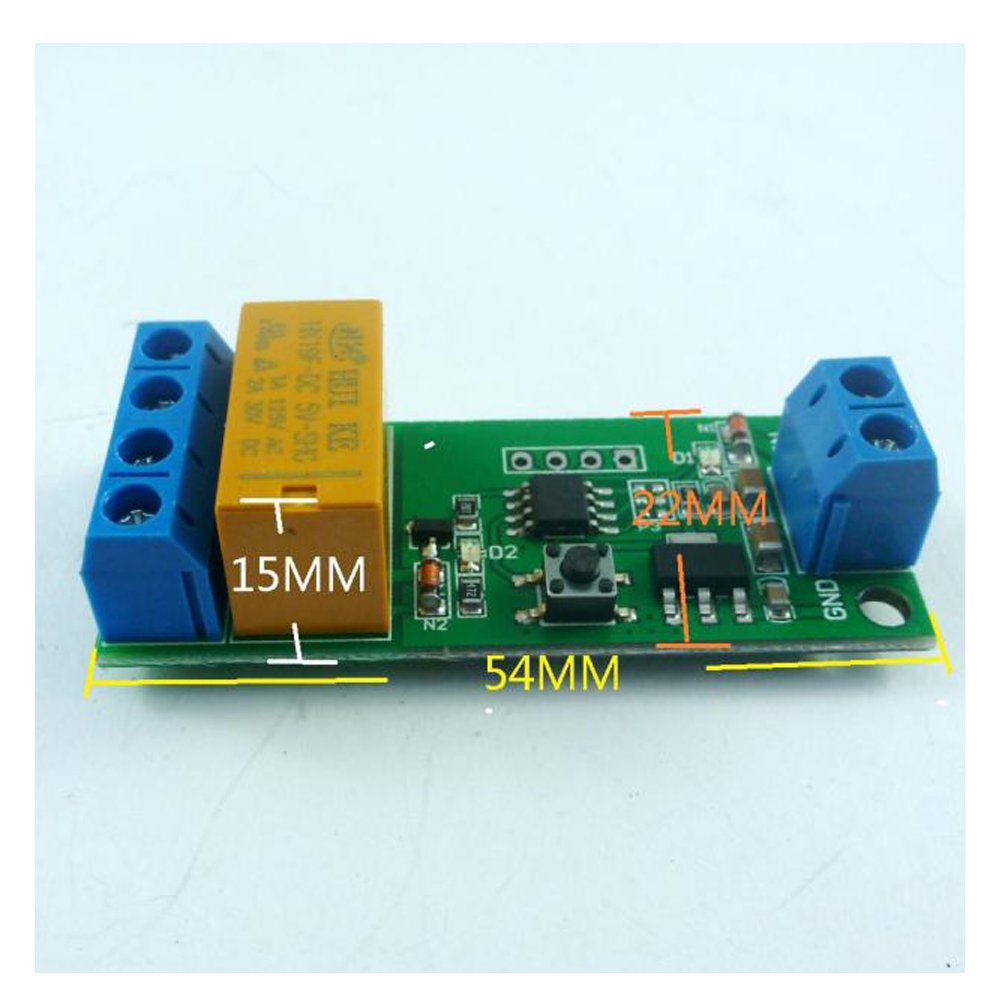

Vanki 5V 6V 9V DC Motor Reverse Polarity Cyclic Timer Switch with Time Repeater & Delay Relay - 1pc for Robotics, DIY Projects, and Automation Control
$7.49
$9.99
Safe 25%
Vanki 5V 6V 9V DC Motor Reverse Polarity Cyclic Timer Switch with Time Repeater & Delay Relay - 1pc for Robotics, DIY Projects, and Automation Control
$7.49
$9.99
25% Off
Delivery & Return: Free shipping on all orders over $50
Estimated Delivery: 10-15 days international
28 people viewing this product right now!
SKU: 18650966
Guranteed safe checkout
Description
How to use: 1.VIN connected to the positive of power supply , GND connected to the negative of power supply; 2.P+ connected to the positive of Motor power supply, P- connected to the negative of Motor power supply; 3.M + M- are connected to both ends of the motor 4.After power, D1 flashes 3 times, D2 off, M+ output positive, M- output negative, motor forward; after a time delay T1, D2 on, M+ output negative, M- output positive, motor reversal; after a time delay T2, D2 off, M+ output positive, M- output negativ, motor forward;and so on. 5.(1)T1: indicates motor Forward delay time, default 0.1-5000 seconds adjustable (step 0.1 seconds) (2)T2: indicates motor Reverse delay time, default 0.1-5000 seconds adjustable (step 0.1 seconds) By "Time multiple selection" setting,The maximum delay of up to 40,000 seconds Package:1pcs
More
Shipping & Returns
For all orders exceeding a value of 100USD shipping is offered for free.
Returns will be accepted for up to 10 days of Customer’s receipt or tracking number on unworn items. You, as a Customer, are obliged to inform us via email before you return the item.
Otherwise, standard shipping charges apply. Check out our delivery Terms & Conditions for more details.
Reviews
*****
Verified Buyer
5
Took a moment to figure out the wiring but now that I have it correct just need to figure out how to program the length of time per direction. It does function as it says it does.
