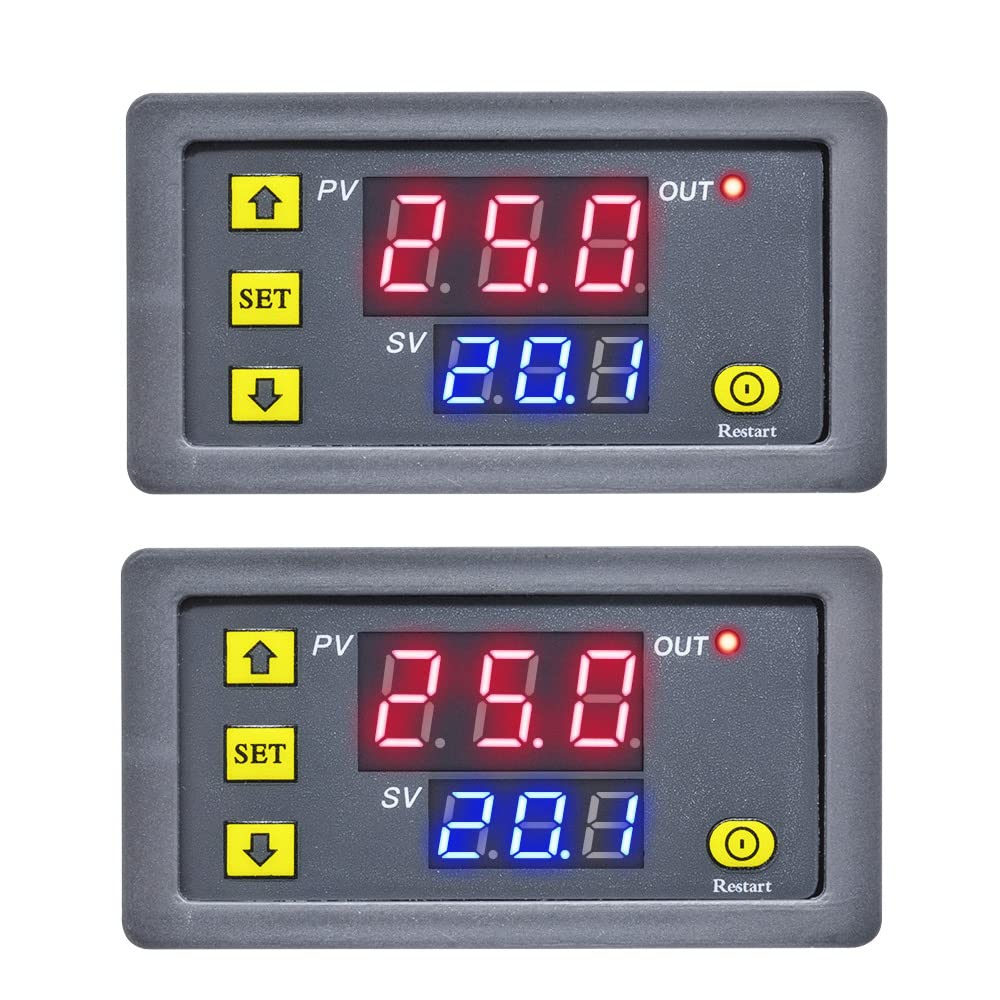

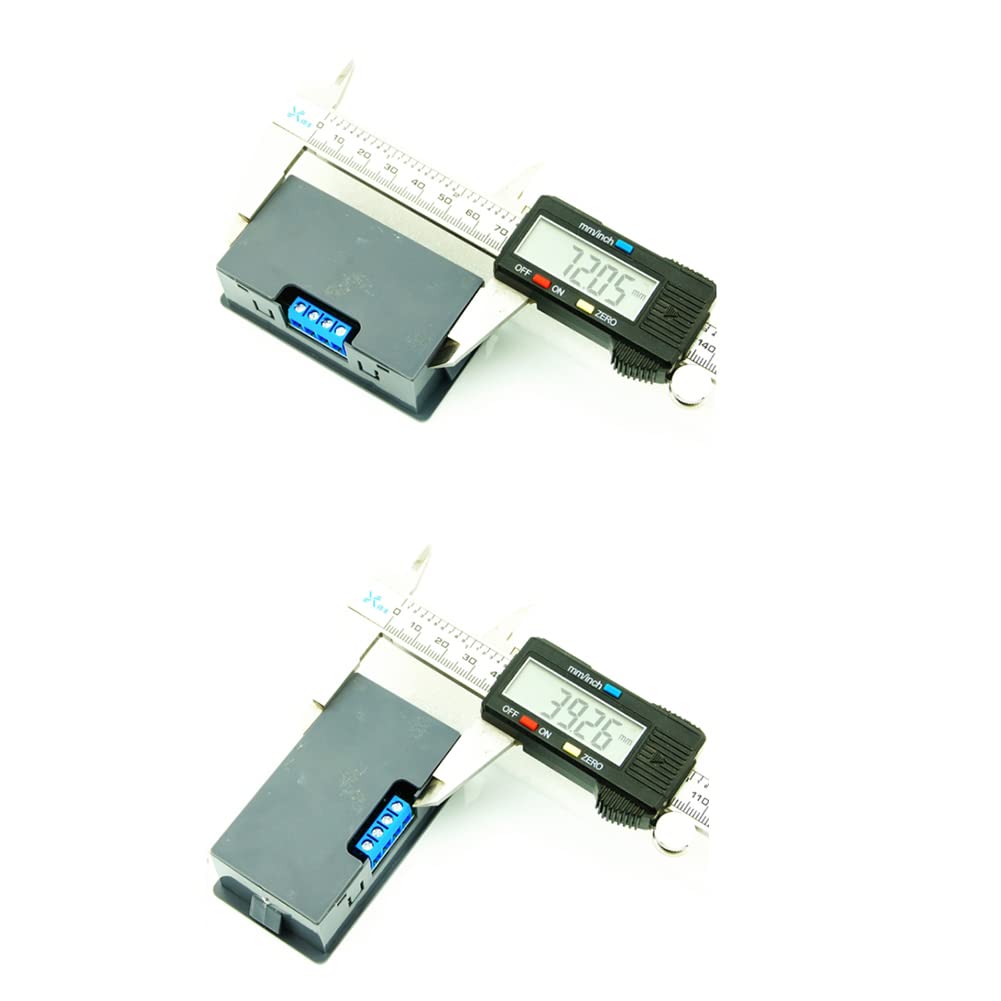

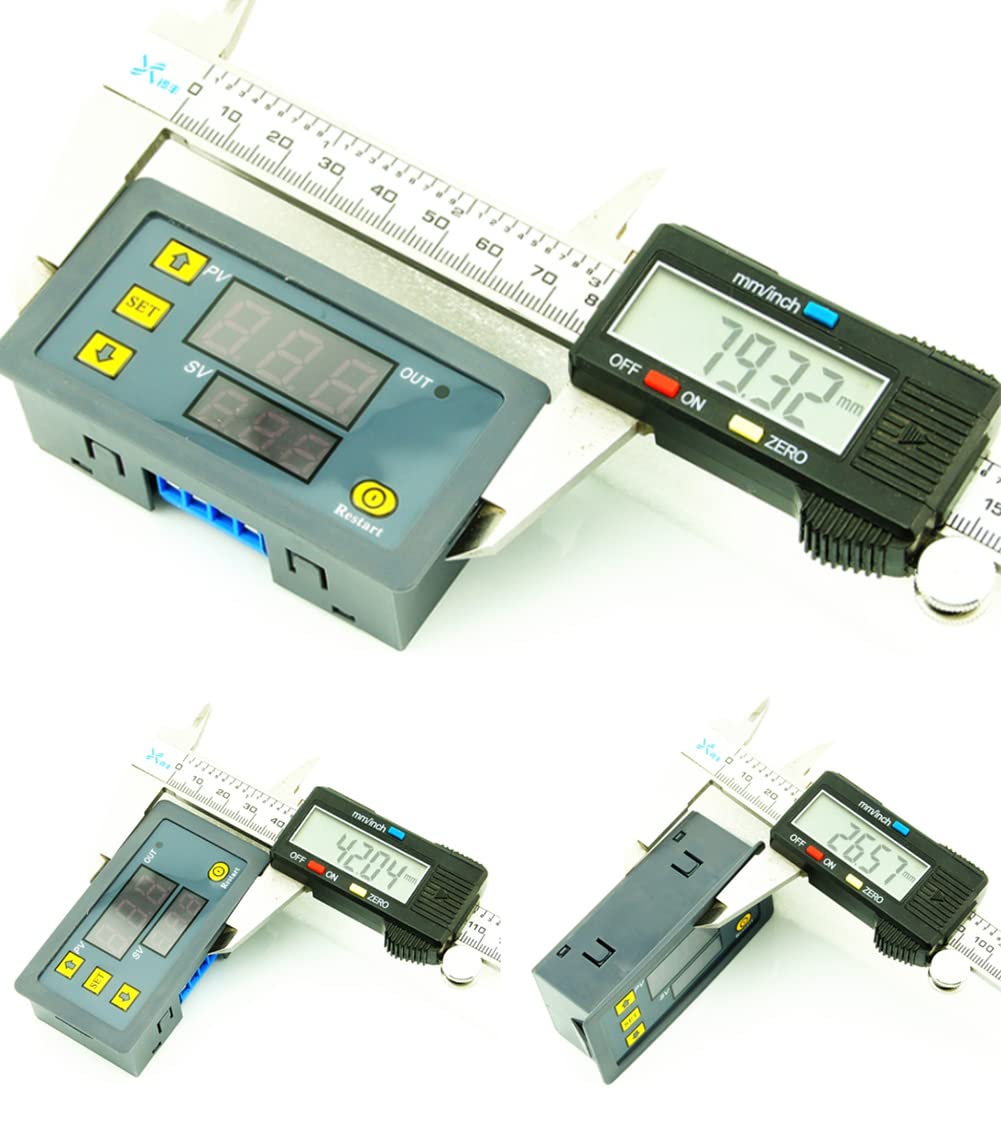

Timer Delay Relay Programmable Cycle Timer Switch Product instructions The time control relay is a passive output countdown time control relay, according to the working voltage is divided into DC12V, DC24V, AC110-220V three specifications, equipped with one way normally open relay, with timer on, timer off, alternate on/off, alternate off/on, cycle on/off and cycle off/on six working modes, timing unit synchronization. Power on automatically triggers timing operation, and disconnection automatically saves the last valid setting. 1. Short press button “SET”: Start the Time Setting Mode and screen will blinking. Please set time T1 during blinking. Press button “SET” and screen will blinking again. Set time T2 during blinking. Then save set in two method: Waiting for 6S and the screen stop blinking. The system automatically saves the setting time; Press button “SET”. 2. Long press button “SET”: Start the Parameter Setting Mode. There are two parameters for your choice: P0 and P1. You can select P0 or P1 by short press “SET”. Under the parameter P0, P1 you can set the parameter by the button UP and button DOWN. 3. Restart key: Trigger the function again. After the timer finishes work normally. If needs to work again please short press the 'Restart key' to restart the timer. 4. Delayed start-up is to cut off the power first and then keep it power-on. Assuming a 6 seconds delay in power-on is required, the code parameters are set to P0=0, P1=0, the timing parameter PV digital tube is set to 6, and SV ignores the setting. 5. Delayed shutdown is to power on first and then keep it power off. If the shutdown needs to be delayed for 6 seconds, the code parameter is set to P0=0, P1=1, the timing parameter PV nixie tube is set to 6, and SV ignores the setting. 6. Alternate switch once setting: (1)First power off and then power on, alternately once to keep the power off, not cycle. Assuming you need to shut down for 100 seconds, then power on for 50 seconds, and finally shut down. Then the code parameter is set to P0=0, P1=2, the timing parameter PV digital tube is set to 100, and the SV digital tube is set to 50. (2)First power on and then power off, alternate once to keep the power on, not cycle. Suppose it is necessary to turn on the power for 100 seconds, then turn off the power for 50 seconds, and finally turn on the power. Then the code parameters are set to P0=0, P1=3, set the timing parameters PV digital tube to 100 and SV digital tube to 50. 7. Infinite cycle switch setting (1)First Power off and then power on, infinite cycle. Suppose it is necessary to stop the power for 100 seconds and then turn on the power for 50 seconds, infinite cycle. Then the code parameters are set to P0=0, P1=4, the timing parameters PV digital tube is set to 100, SV digital tube is set to 50. (2)First power on and then power off, infinite cycle. Assume the need to power on for 100 seconds and then power off for 50 seconds, infinite cycle. Then the code parameters are set to P0=0, P1=5, set the timing parameters PV digital tube to 100 and SV digital tube to 50. LED Digital Display Time Relay Module Parameter Timing Range: 0-999s, 0-999min, 0-999h Relay type: Normally open relay Supply Voltage: DC12V 20A/240W(Max) DC24V 20A/480W(Max) AC110-220V 10A/1500W(Max) Size: 79*42*26mm, Hole size: 72*40mm Weight: 50g Product Functions: Timing, Delaying, Time Cycling & etc. Set-up P0--0: T1 timing for Seconds (0-999s). P0--1: T1 timing for Minutes (0-999m). P0--2: T1 timing for Hours (0-999h). P1-0 Load is off until (T1 or PV) time counts down to 0 then the load will come on and stay on. P1-1 The load comes on as the power button is pressed. After PV Time the load will go off. P1-2 The load is off for (T1 or PV)(delay time) then the load switches on and runs for the time set in (T2 or SV) then switches off until power switch is pressed to cycle again. P1-3 Load is on until PV Time runs out Then after SV time runs out the load will come on and stay on. P1-4 Load is off until (T1 or PV)(Delay) time counts down to 0, then load comes on until SV time counts down to 0 then the load is off then it cycles again and again-auto cycle. P1-5 The load is on until (T1 or PV) time counts down to 0 then powers down and after (T2 or SV)Time counts down to 0 the load will start working and cycle again and again-auto cycle. Application 1: Used for timing, delay, cycle timing, intermittent timing and other occasions. 2: Used for raft fishing machine, slow-down machine. 3: Used for timer switch, timer alarm control panel. Note: Please pay attention for your first use. You need wait 6s after your setting data, the module will save you have set after 6s. Control type: Time-control typeWorking voltage: DC12V, DC24V, AC110-220VTiming type: non-clock type countdown timerTimer on: SupportTimer shutdown: SupportCycle switch: SupportAlternating switch: SupportIndependent timing unit: not supportedRelay type: 1 way normally open relayOutput type: No output Working voltage = label Indication voltage, S1 and S2 have no output. When the labeled voltage = load working voltage, the time controller can work with the load shared power supply. When the labeled voltage = load working voltage, the time controller can work with the load shared power supply. Features 1 Support multiple types of working mode including timing, alternate and cycle working modes meeting your most demands. Features 2 Time ranging from 1 second to 999 hours. Double LED displays, so you can set two timing time T1 and T2. Six operating modes for your choice. Features 3 Dual LED Display: On-board dual green-red LED display module and tactile push-button, which is easy to set the delay time and working modes(Red readout for practical value(PV); green readout for set value(SV). Features 4 This relay switch is four-terminal wiring and setting by buttons, easy and simple for everyone to use it. Timer Switch Timer Switch Timer Switch Add to Cart Buying Options Add to Cart Customer Reviews 4.3 out of 5 stars 23 5.0 out of 5 stars 1 4.2 out of 5 stars 20 Price $15.49$15.49 — no data $16.99$16.99 Supply Voltage DC12V DC24V DC110-220V Operating Current 20A 20A 10A Load Power 240W(Max) 480W(Max) 1500W(Max)
