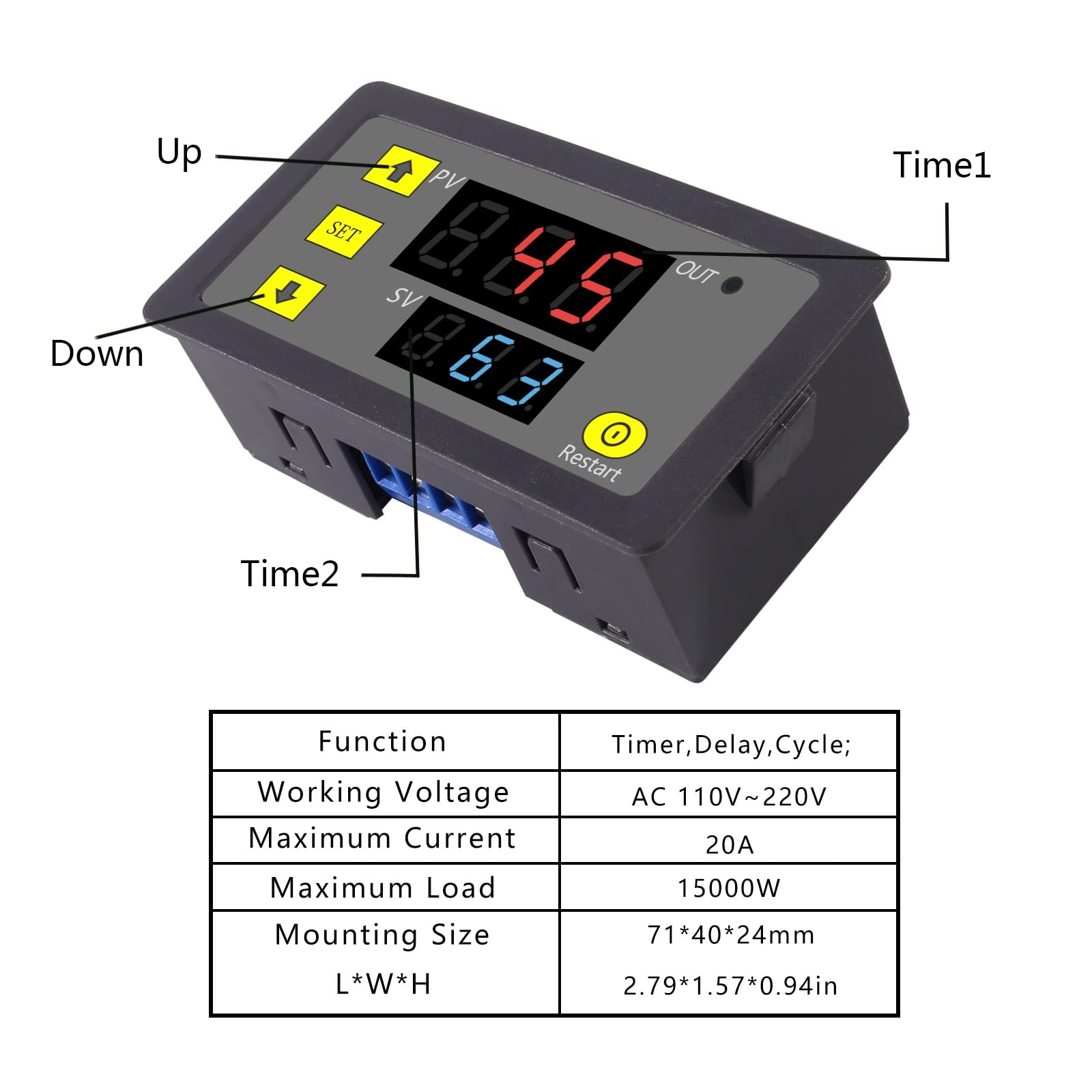

Parameter: Timing Range: 0-999s, 0-999min, 0-999h Supply Voltage: DC 12V 20A/240W(Max) DC 24V 20A/480W(Max) AC 110-220V 10A/1500W(Max) Size: Approx.71*40*24mm(L*W*H) Product Functions: Timing, Delaying, Time Cycling etc. Time Relay Work Mode: P0- P0--0:T1 Timing mode is second(0-999s) P0--1: T1 timing mode is minutes(0-999m) P0--2:T1 Timing Time mode is hour(0-999h) Time Relay Work Mode: P1- P1-0 Load is off until (T1 or PV) time counts down to 0 then the load will come on and stay on.P1-1 The load comes on as the power button is pressed. After PV Time the load will go off.P1-2 The load is off for (T1 or PV)(delay time) then the load switches on and runs for the time set in (T2 or SV) then switches off until power switch is pressed to cycle again.P1-3 Load is on until PV Time runs out Then after SV time runs out the load will come on and stay on.P1-4 Load is off until (T1 or PV)(Delay) time counts down to 0, then load comes on until SV time counts down to 0 then the load is off then it cycles again and again-auto cycle.P1-5 The load is on until (T1 or PV) time counts down to 0 then powers down and after (T2 or SV)Time counts down to 0 the load will start working and cycle again and again-auto cycle. Instruction After setting the data, you must wait 6 seconds, 6s post modules automatically save memory set data.Press SET key once to enter the time setting mode, the red LED flashes, press the key to increase or decrease the setting time T1.After setting time T1, short press the SET key again, the green LED flashes,and the time is set by pressing the key Time T2, T2 time setting is completed, press SET key again, the system will automatically save the memory setting time or wait for 6s, 6s module will automatically save the data memory.Long press SET, enter parameter setting mode. There are two sets of parameters for the user to select P0, P1. Short press SET in the current mode to switch between P0 and P1.In P0 parameter can be set by pressing the key to adjust their own timing mode. In the P1 parameter can be set by adding and subtracting keys work mode. Function Support multiple types of working mode including timing, cycle and cycle working modes meeting your most demands.Please pay attention for your first use. You need wait 6s after your setting data, the module will save you have set after 6s. Timing Range: 0-999s,0-999m,0-999h Dual LED Display On-board dual green-red LED display module and tactile push-button, which is easy to set the delay time and working modes(Red readout for practical value(PV); green readout for set value(SV) Application 1: Used for timing, delay, cycle timing, intermittent timing and other occasions; 2: Used for raft fishing machine, slow-down machine; 3: Used for timer switch, timer alarm control panel AITIAO DC 12V Programmable Delay Timer Switch AITIAO DC 24V Programmable Delay Timer Switch AITIAO AC 110-220V Programmable Delay Timer Switch Add to Cart Add to Cart Add to Cart Customer Reviews 4.2 out of 5 stars 50 4.2 out of 5 stars 50 4.2 out of 5 stars 50 Price $15.99$15.99 $18.99$18.99 $16.99$16.99 Supply Voltage DC 12V DC 24V AC 110~220V Timing Range 0-999s,0-999m,0-999h 0-999s,0-999m,0-999h 0-999s,0-999m,0-999h Product Functions Timing, Delaying, Time Cycling & etc Timing, Delaying, Time Cycling & etc Timing, Delaying, Time Cycling & etc
