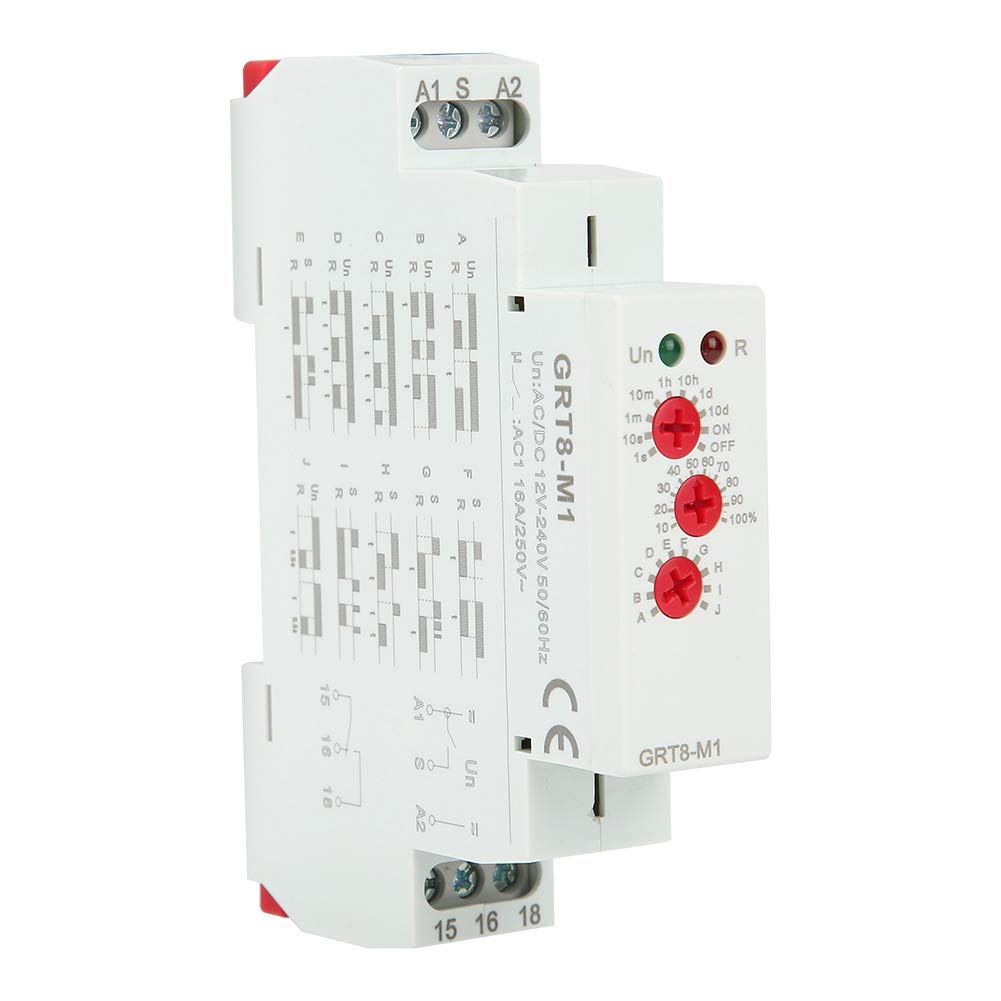

GRT8-M1 Multifunctional Time Delay Relay Timer with 10 Functions, DIN Rail Mount, AC/DC 12V-240V, On/Off Timer for Industrial Automation, HVAC Systems, and Electrical Control Panels
$22.97
$41.77
Safe 45%
GRT8-M1 Multifunctional Time Delay Relay Timer with 10 Functions, DIN Rail Mount, AC/DC 12V-240V, On/Off Timer for Industrial Automation, HVAC Systems, and Electrical Control Panels
$22.97
$41.77
45% Off
Delivery & Return: Free shipping on all orders over $50
Estimated Delivery: 10-15 days international
16 people viewing this product right now!
SKU: 68550972
Guranteed safe checkout
Description

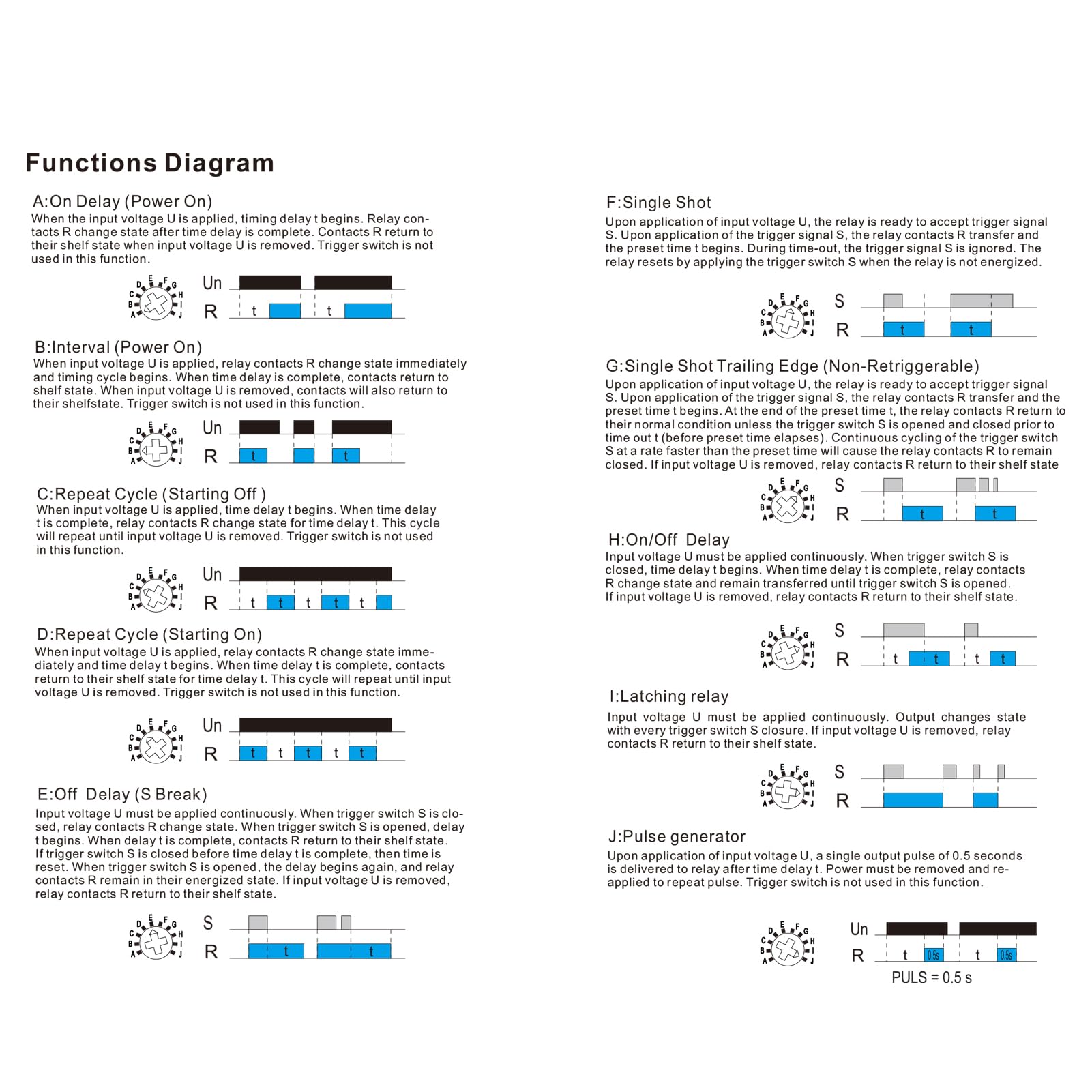

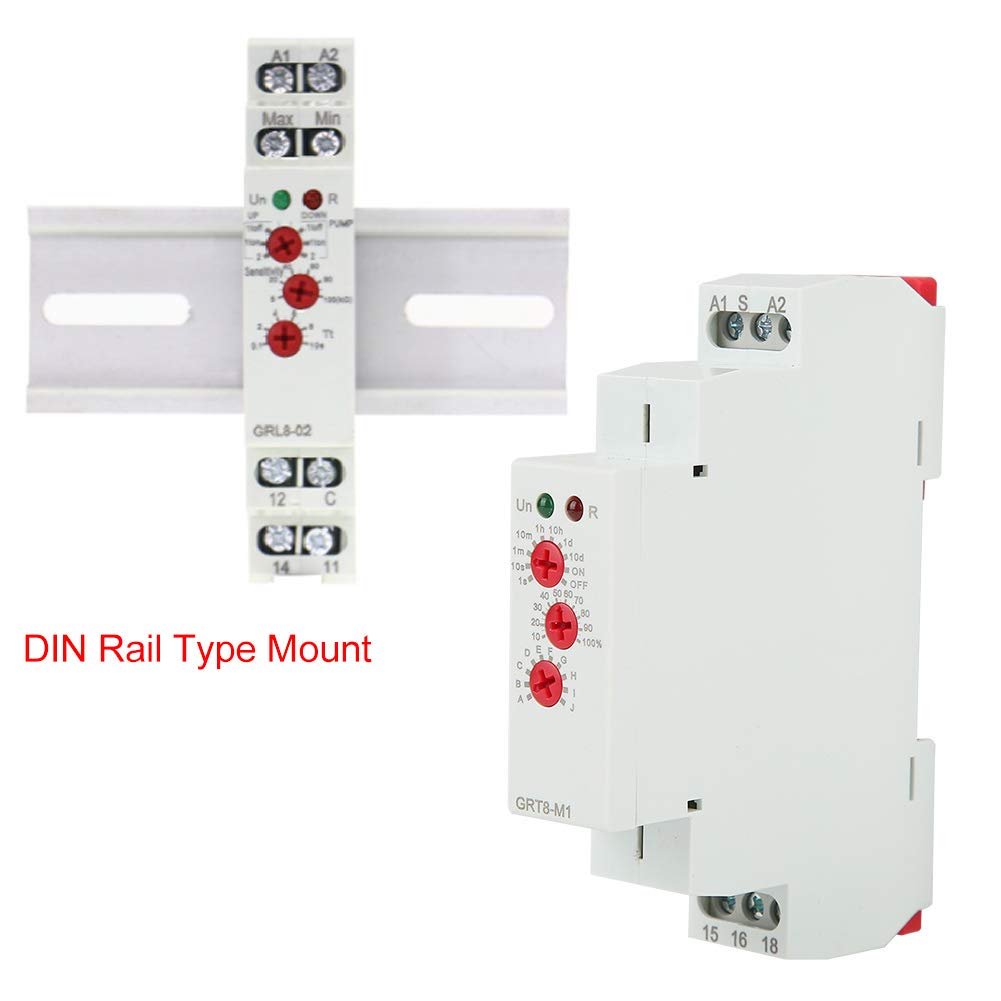

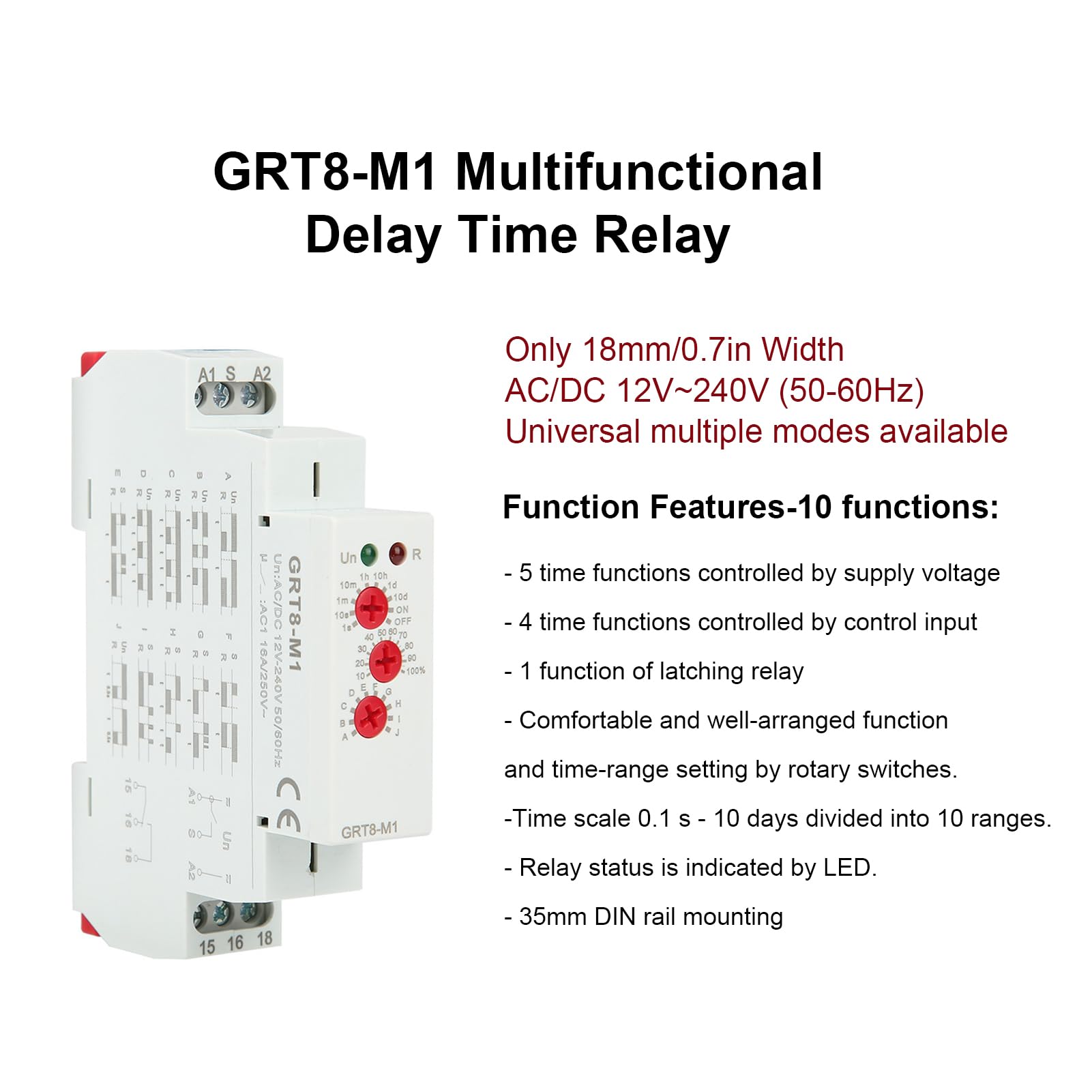

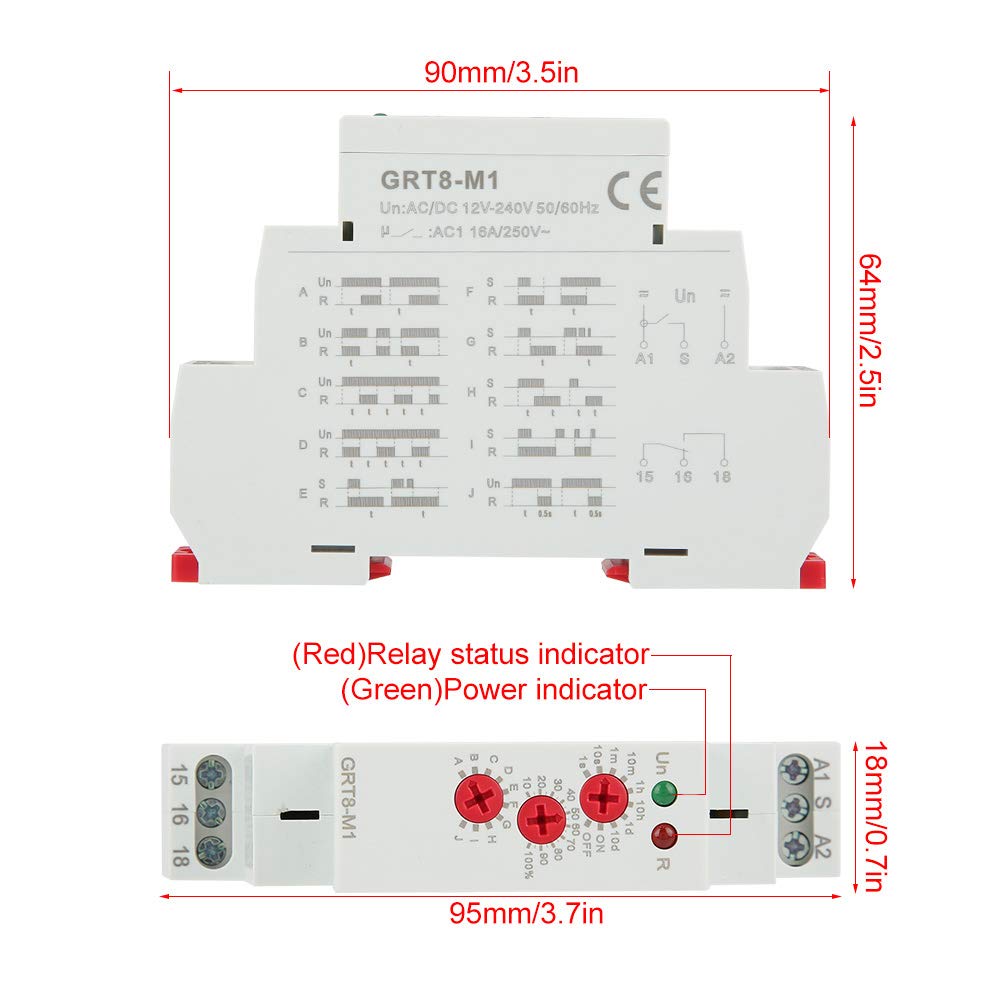

Description: This is a multifunctional time relay, with 10 kinds of delay functions including delay on, delay off, cycle delay and so on. It can be set by panel knob, and the time scale is 0.1s-10 days. With super small volume, this relay can be mounted on 35mm DIN rail. Suitable for industrial equipment, lighting control, heating element control, motor, fan control and more. Specification: Rated power supply voltage AC/DC 12V~240V (50-60Hz) Power terminal A1-A2 Power consumption AC0.09-3VA/DC0.05-1.7W Setting method knob Setting accuracy 10% Power indicator Green LED Delay range 0.1s-10 days, normally open, normally closed Repeated accuracy 0.2% Temperature fluctuation error 0.05%/℃, at = 20℃ Output contact 1 × SPDT, 250VAC/24VDC Minimum switching power 500mW Output relay indication red LED Mechanical life 1×107 Reset time Max 200ms Weight Approx. 75g/2.6oz Mounting altitude ≤2000m Mounting method 35mm DIN rail Working temperature -20℃~55℃ Package List Multifunctional Delay Time Relay Package list: 1 * Multifunctional Delay Time Relay. This is a multifunctional time relay and time delay can be set by panel knob. This time relay can be used for industrial equipment, lighting control, heating element control, motor, fan control and more. Relay working status is indicated by LED indicators. With super small volume, this relay can be mounted on 35mm DIN rail. With 10 kinds of delay functions including delay on, delay off, cycle delay and so on. Super wide time delay setting range of 0.1s - 10days. WIDELY APPLICATION Lighting Control Industrial Equipment Fan Control Heating Element Control
More
Shipping & Returns
For all orders exceeding a value of 100USD shipping is offered for free.
Returns will be accepted for up to 10 days of Customer’s receipt or tracking number on unworn items. You, as a Customer, are obliged to inform us via email before you return the item.
Otherwise, standard shipping charges apply. Check out our delivery Terms & Conditions for more details.
Reviews
*****
Verified Buyer
5

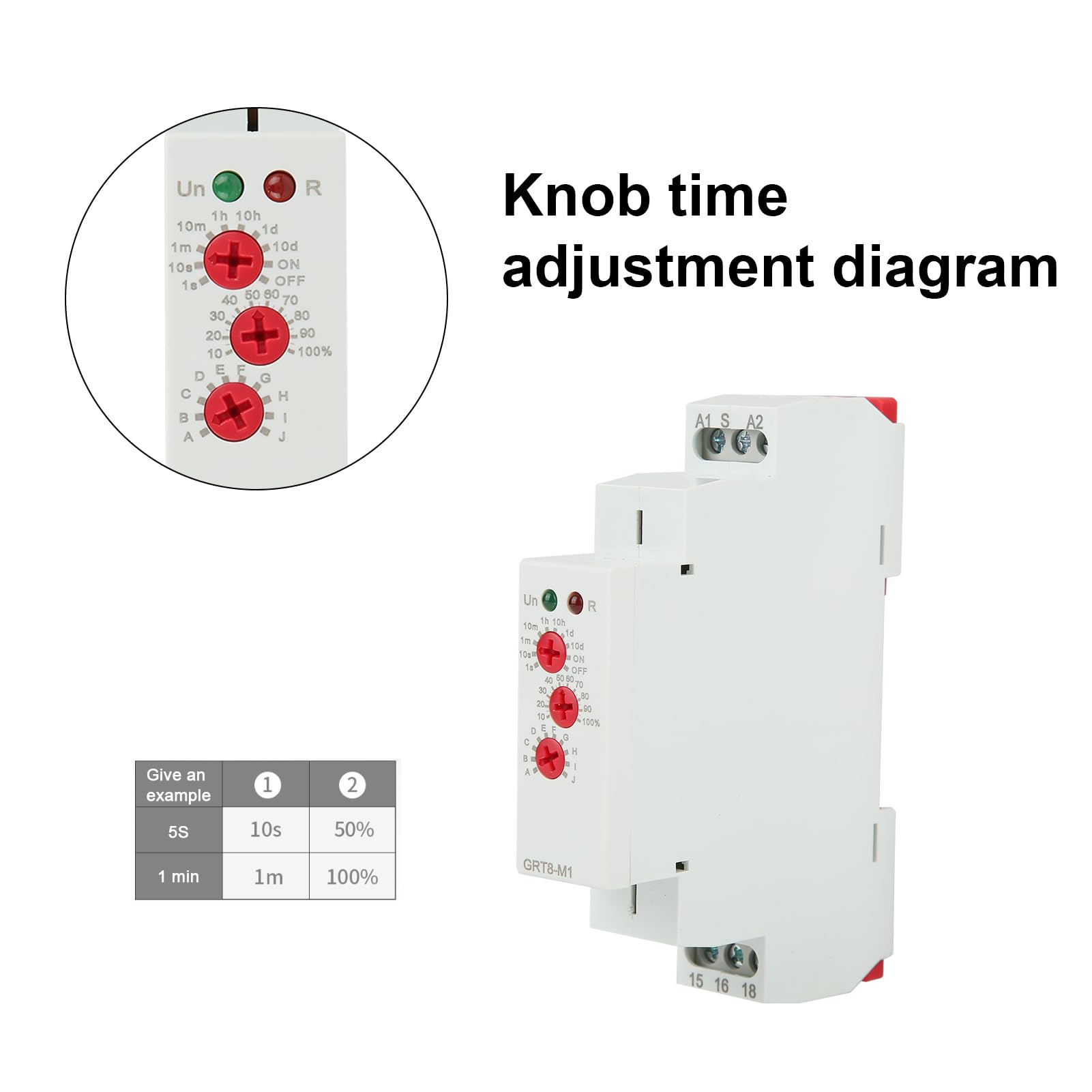

I can't say enough nice things about this unit. With 12v being the very bottom of its input voltage spec, I wasn't sure how it would perform in an automotive application, but it's happy to 10v and below, turns out.It gets a little warm in operation, so don't wire it up where that would cause battery drain, but as a shutdown timer that kills its own power, it's fine. (Program E, with some diodes to let it power itself up in the first place.) All the programs are useful too, I'm gonna start keeping a few of these around for general purposes.The time setting dial isn't super accurate; the range between 1% and 10% is considerably smaller than it looks. If you need very long times, this can be difficult to test, but the percentage applies regardless of which decade interval you've set. So the workaround is to find a short interval and test there: Say you need a 7-day delay, which you'll set as 70% of the 10d interval. Instead, set it for the 10s interval and tweak the percentage until you get a 7s delay. Then just flip over to the 10d interval and you should be good!
