Hilitand Adjustable Timer Switch Module - DC 12V Input, 30A Load, 250VAC/30VDC - Manual Operation with Silver Contact for PCB Mount Timer Relay - Perfect for Home Automation, Industrial Control, and Electrical Equipment Timing
$8.04
$10.73
Safe 25%
Hilitand Adjustable Timer Switch Module - DC 12V Input, 30A Load, 250VAC/30VDC - Manual Operation with Silver Contact for PCB Mount Timer Relay - Perfect for Home Automation, Industrial Control, and Electrical Equipment Timing
$8.04
$10.73
25% Off
Delivery & Return: Free shipping on all orders over $50
Estimated Delivery: 10-15 days international
24 people viewing this product right now!
SKU: 90784988
Guranteed safe checkout
Description

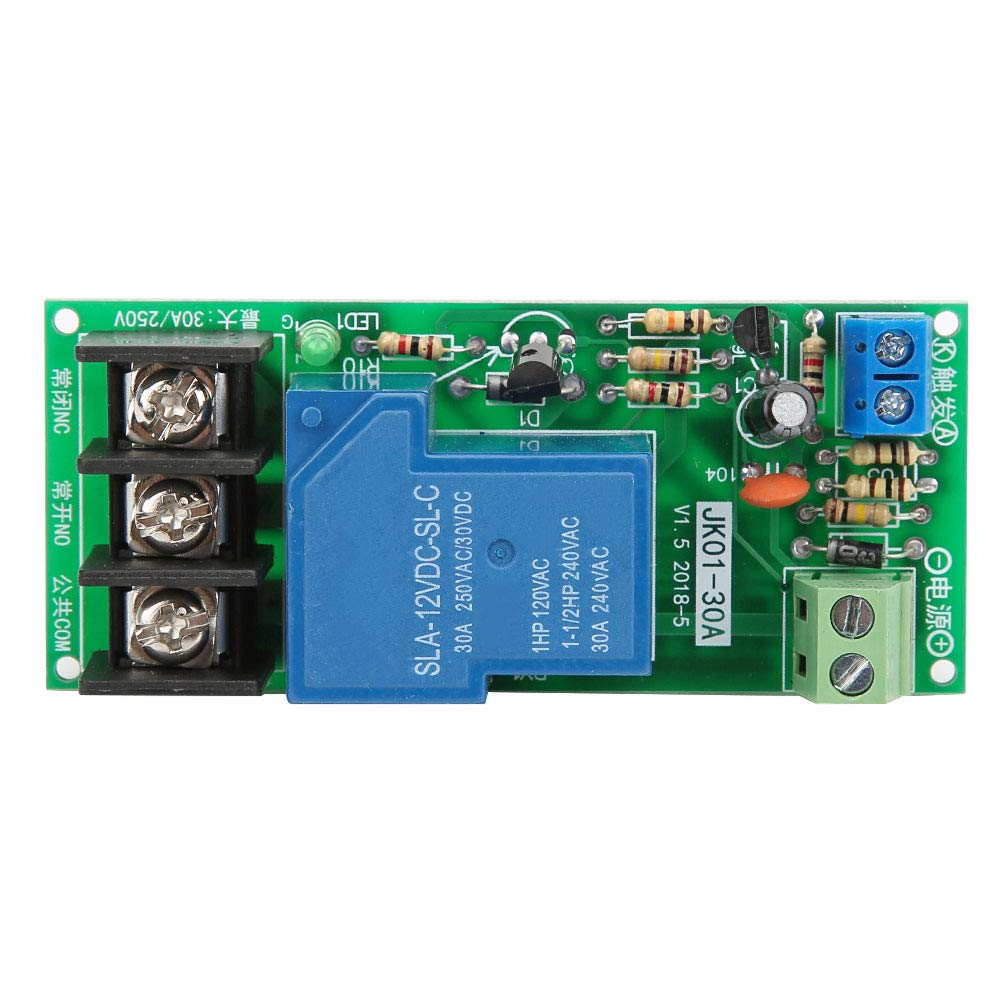

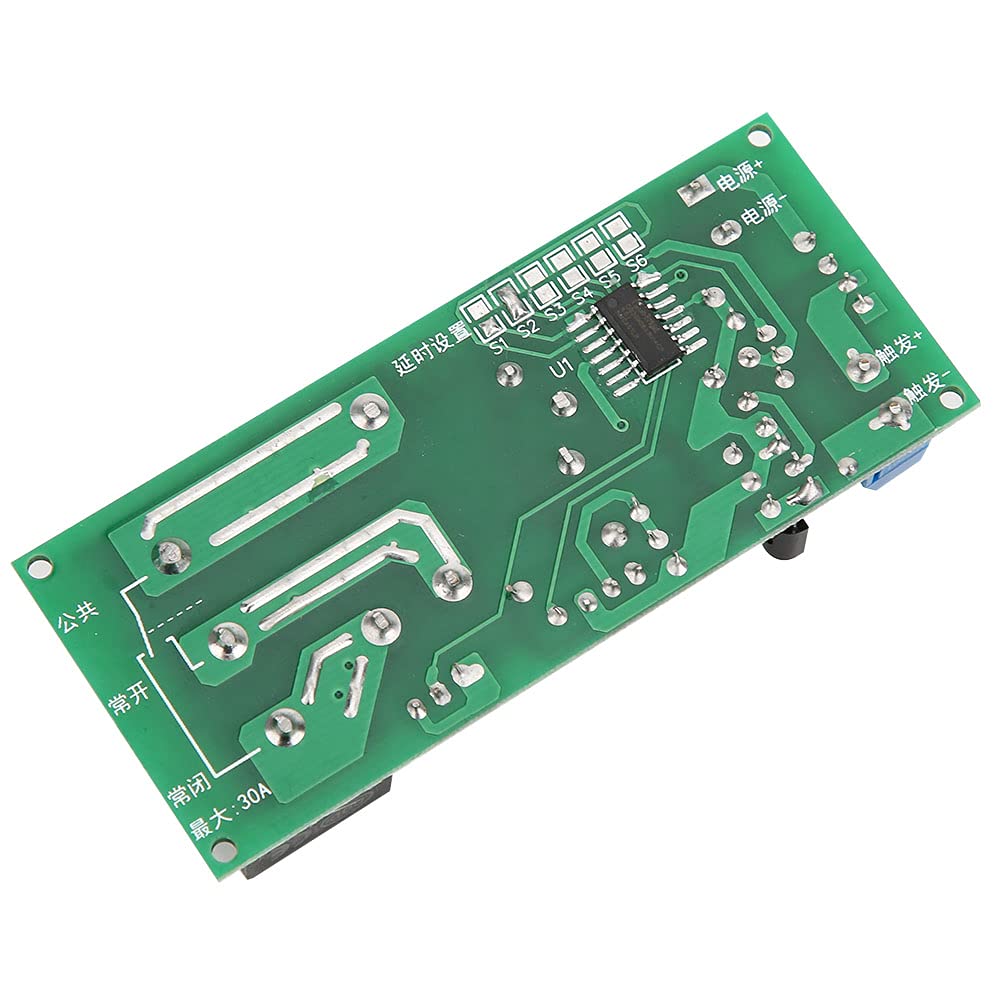

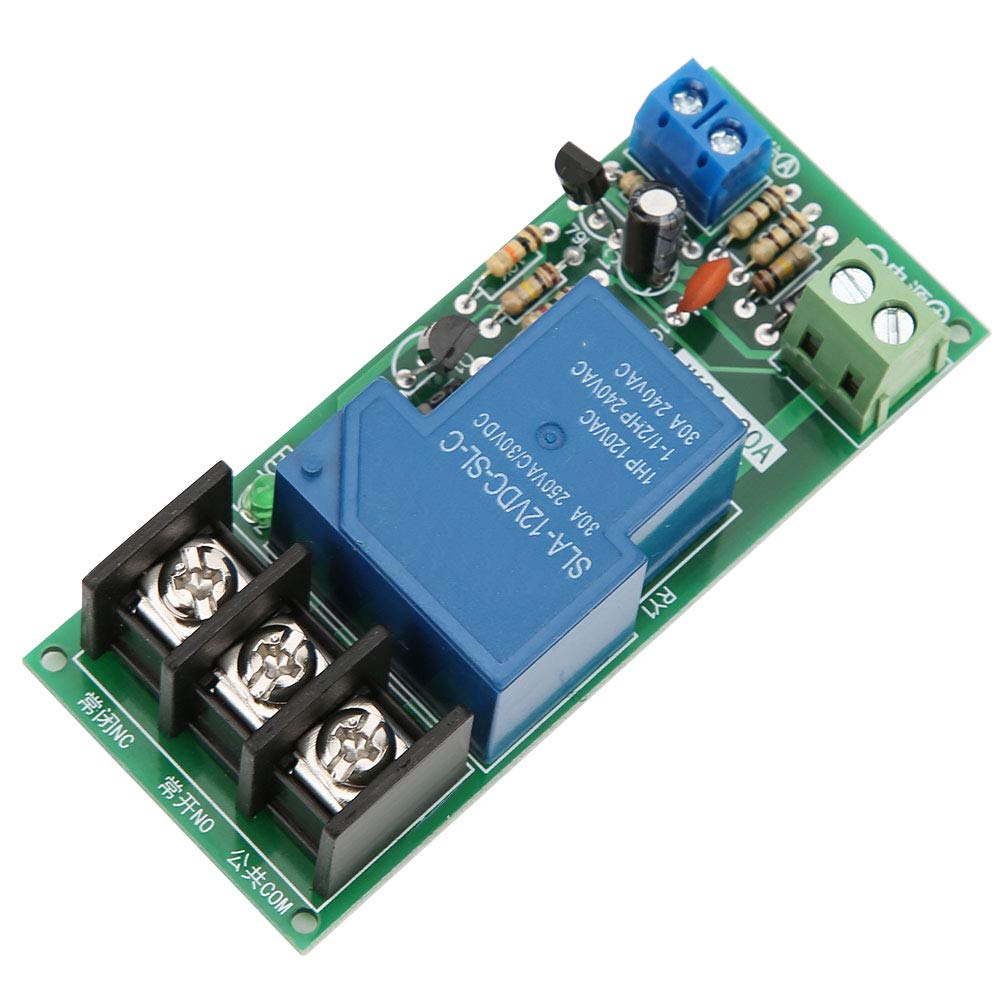

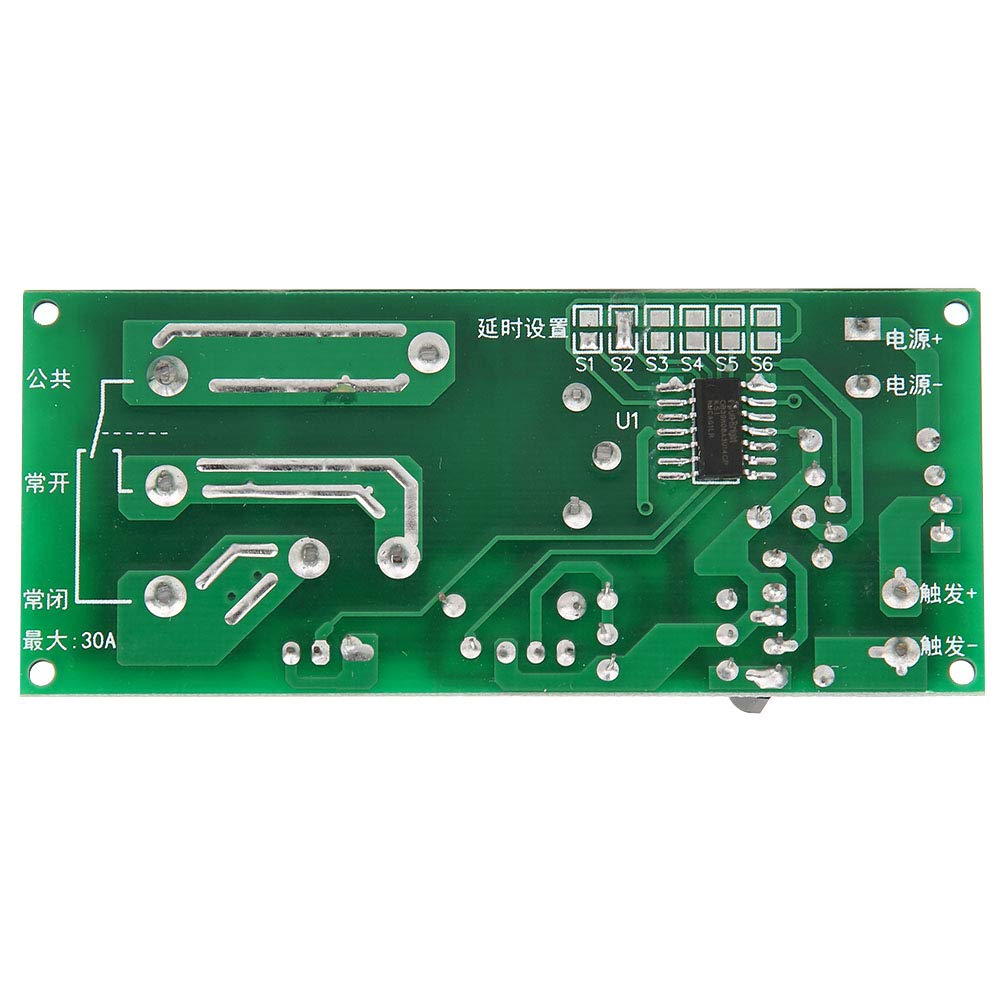

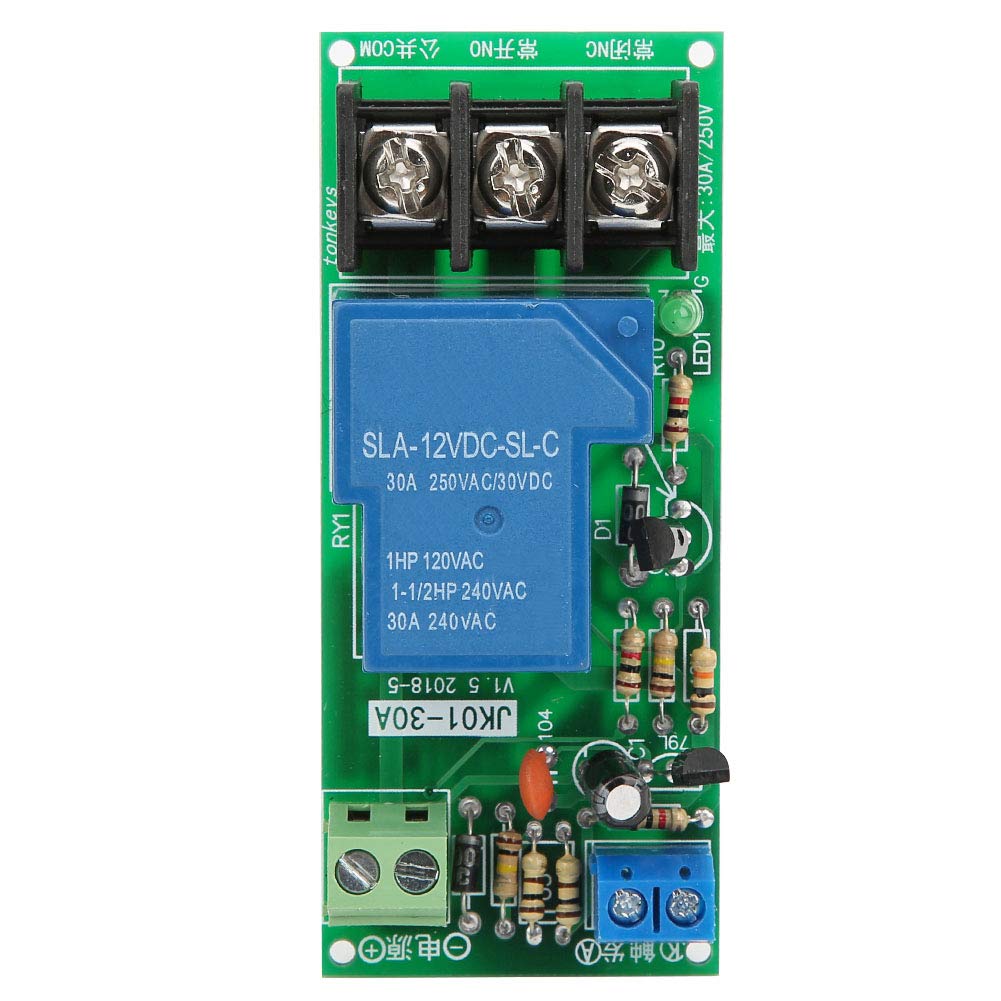

Specifications: Time Delay: 0Seconds~60Minutes(adjustable) Time Delay Error: <2% Load Capacity: 30A 250VAC/30A 30VDC Size: 82x35mm / 3.22x1.37" Quantity: 1 Instruction: 1, Solder S1~S5 welding joints in different ways according to the delay time table to set delay time. 2, When none joints are soldered, trigger to connect, and trigger again to disconnect. 3, Control signal is trigger type signal, after trigger, time delay will not be affected if withdraw or maintain signal. 4, If trigger again during delay time, delay time will be restarted. 5, If trigger terminals were connected directly without a trigger button, each time powering on the board is equal to pressing trigger button once. Function 1: Power on to connect load, and disconnect after delay time. Method: Connect trigger terminals directly. Function 2: Power on (trigger disconnect) to enter time delay mode, and connect after delay time. Method: Connect trigger terminals directly, solder S6 joints. Package Includes: 1 x Timer Relay Module
More
Shipping & Returns
For all orders exceeding a value of 100USD shipping is offered for free.
Returns will be accepted for up to 10 days of Customer’s receipt or tracking number on unworn items. You, as a Customer, are obliged to inform us via email before you return the item.
Otherwise, standard shipping charges apply. Check out our delivery Terms & Conditions for more details.
Reviews
*****
Verified Buyer
5
Circuit is well made. Specs on the relay should be plenty capable of running the AC pumps I bought this for. Its a mechanical relay that should be fine for this use. Came with no instructions on the jumper versus delay time. I searched online and found the time delay table info that was not included. Also found that the trigger works by just using a momentary switch to connect the trigger terminals to start the time countdown. Hitting the button again while counting down restarts the timer. No additional voltage needed to trigger. Looks like there is a built in 5v already in the trigger circuit.. Soldering the jumpers to set the delay worked great. The green LED lights and stays on during the delay countdown. Seems like a nice simple heavy mechanical relay to run a recirculation pump for a set time that I needed. Other than the quirks with instructions it looks like a solid time countdown relay circuit.April 2, 2022 update. Been using the circuit as a countdown timer to run a hot water recirculating pump daily. A single pole normally open push button switch is used to trigger the start for the pump to run. Working great. Upped the recommendation to a 5 star.
