12V DC Adjustable Delay Timer Relay Switch Module (0-25 Sec) with Opto-Coupler Isolation - On/Off Control for Automotive, Home Automation & DIY Electronics Projects
$5.16
$6.89
Safe 25%
12V DC Adjustable Delay Timer Relay Switch Module (0-25 Sec) with Opto-Coupler Isolation - On/Off Control for Automotive, Home Automation & DIY Electronics Projects
$5.16
$6.89
25% Off
Delivery & Return: Free shipping on all orders over $50
Estimated Delivery: 10-15 days international
25 people viewing this product right now!
SKU: 30844402
Guranteed safe checkout
Description

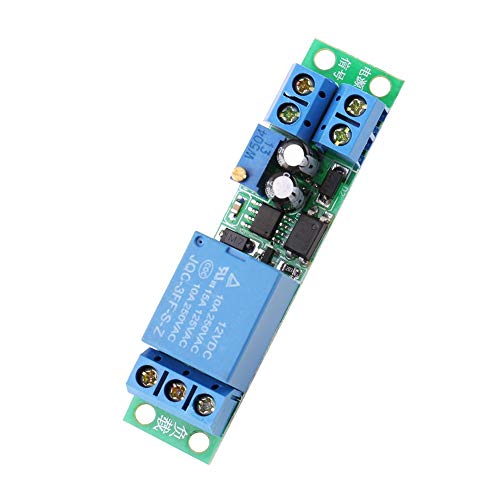

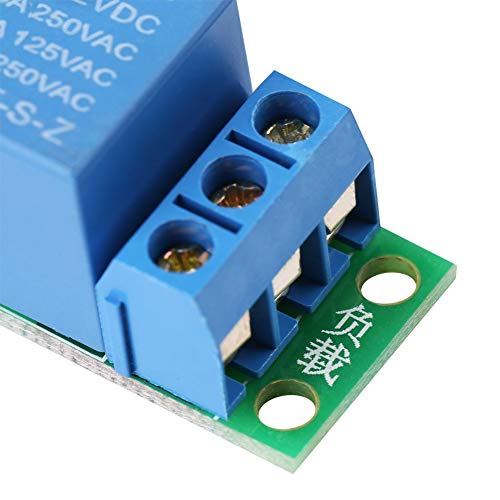

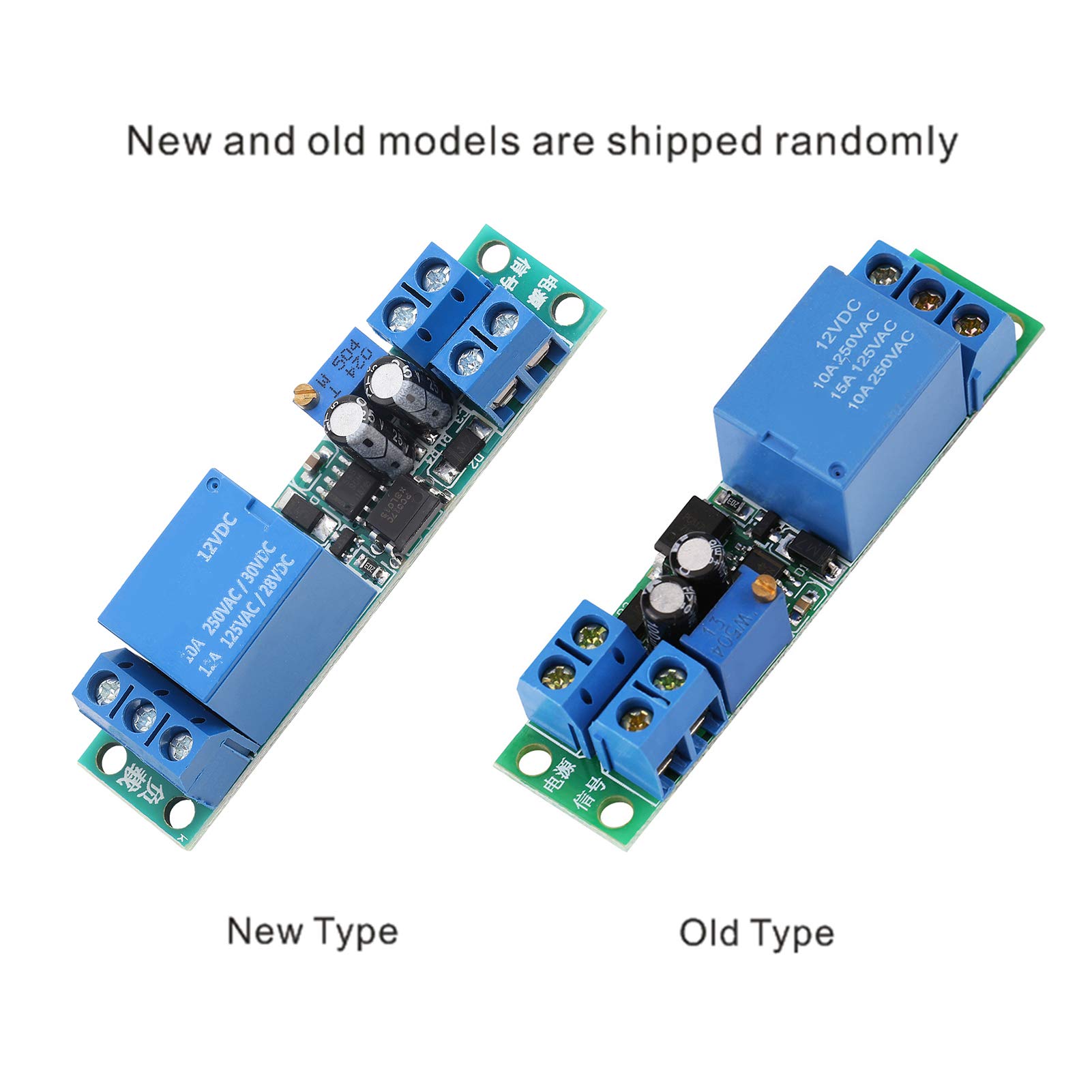

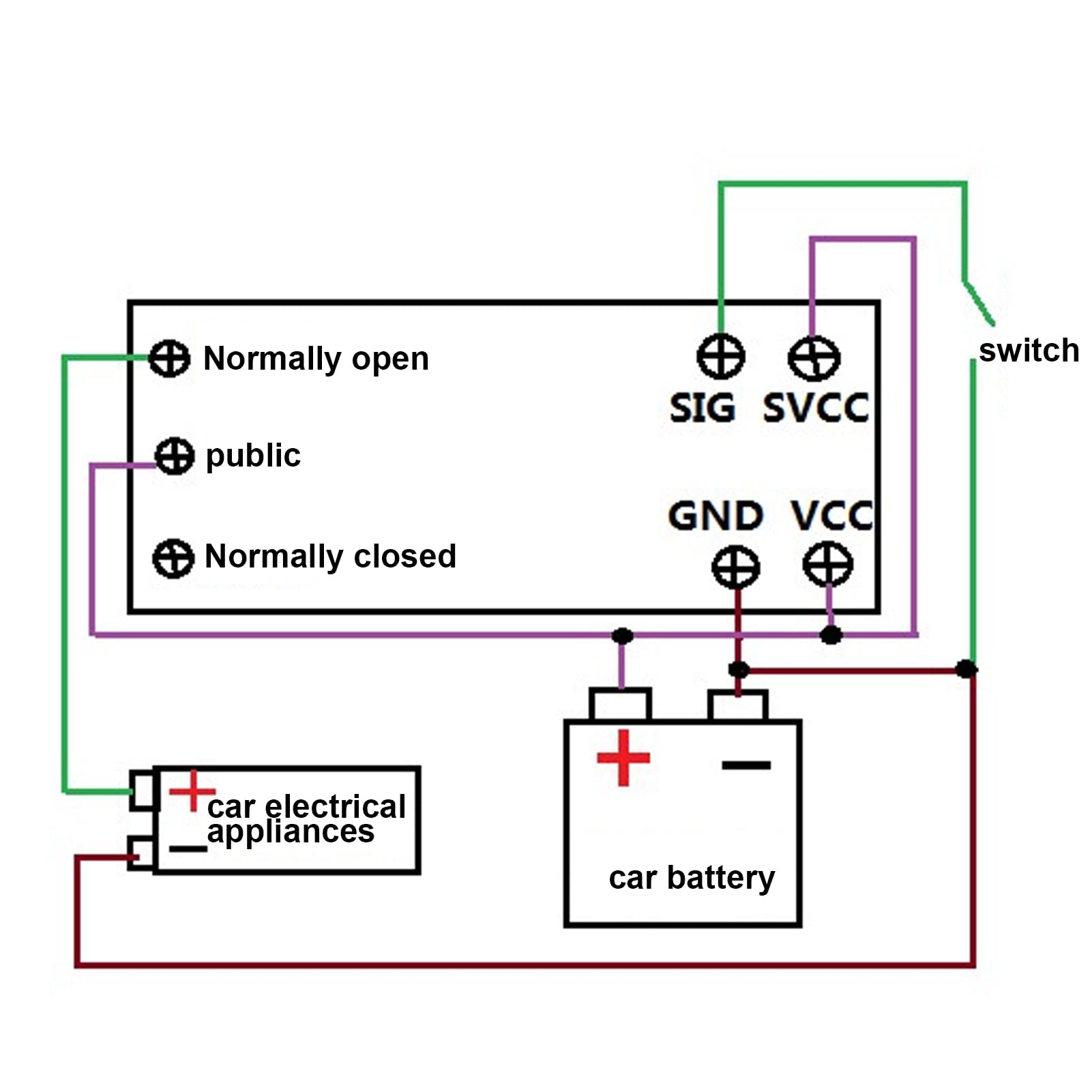

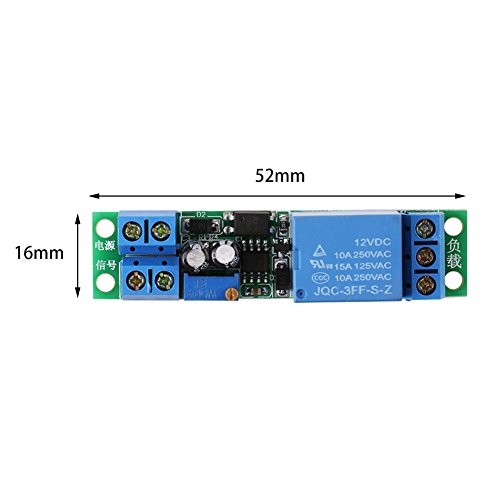

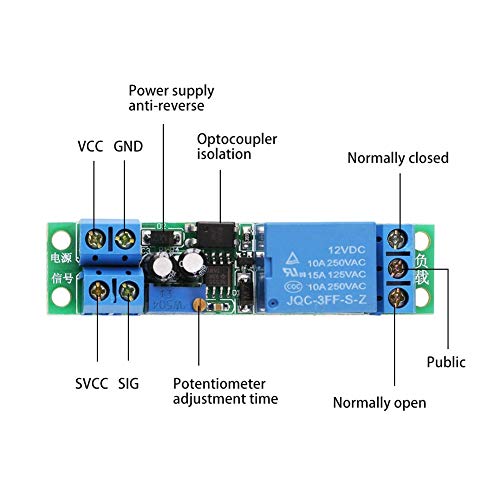

This delay relay module is widely used in robot, automobile lamp, intellectual product development, PLC and electronic development etc. The delay time can be adjusted through potentiometer, and the default value is 0.1s to 25 seconds. You can greatly extend the timespan by replacing a large capacitor or potentiometer. Protection against power reversal protection diode, better protection module. It can be accessed by a large current load (250V ac 10A or 30V dc 10A). Specification: Operating Voltage: DC 12V Load Capacity: AC 250V 10A; DC 30V 10A Delay Time: T(S)=1.1*R(Ω)*C(f); e.g. if capacitor is 47uf, resistor is 500KΩ, T=1.1*0.000047*500000=25.85sec. Size: 52*16mm/2.04*0.62" Working Principle: 1. Power on the module (12V or 5V) and relay is energized immediately. N.O. terminal is connected to COM terminal. 2. Relay is dis-energized after 0 to 25 seconds. N.C. terminal is connected to COM terminal. 3. Relay keeps dis-energized until there is an external trigger . 4. If there is always trigger , relay will keep energized until trigger disappears, then dis-energized after 0 to 25 seconds. Now N.C. terminal is connected to COM terminal. Package Includes: 1 x Timer Relay Module
